From size 12 with crossbar (traverse)
Sizes 6, 8 and 10 without crossbar (traverse)

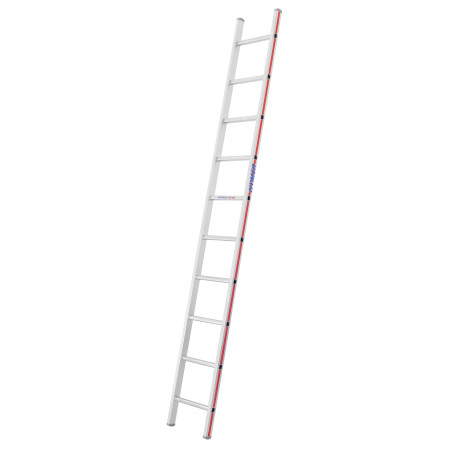

Rung leaning ladder with 10 steps
Rung leaning ladder 4011

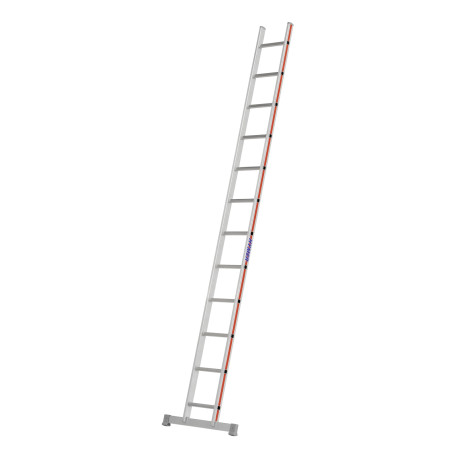

NEW: With cross-beam from size 12
Product benefits
- Inner width of the ladder 300 mm

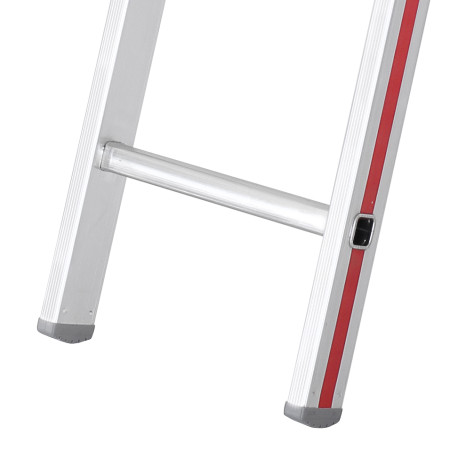

- Rolled profile rungs
- Ladder feet extruded into the stile up to size 10
- NEW: With cross-beam from size 12 (EN 131-1)
- Made en Germany
- Warranty: 10 years
- Safety certification:
- DIN EN 131-1:2016
- DIN EN 131-2:2017
Recommended accessories
- Cross-beam for ladder section for retrofitting
- Suspension hook set
- Suspension set
| Rung leaning ladder 4011 | ||||||
|---|---|---|---|---|---|---|
| 06 | 08 | 10 | 12 | 14 | 16 | |
| Brand, Make | Hymer | |||||
| Classification | Professional use | |||||
| Material | Aluminium | |||||
| Design of treads | Rungs | |||||
| Number of steps | 6 | 8 | 10 | 12 | 14 | 16 |
| Reach height max. | 2.75 m | 3.30 m | 3.85 m | 4.35 m | 4.90 m | 5.45 m |
| Working height | 2.25 m | 2.80 m | 3.35 m | 3.85 m | 4.40 m | 4.95 m |
| Standing height | 0.75 m | 1.30 m | 1.85 m | 2.35 m | 2.90 m | 3.45 m |
| Platform height | - | |||||
| Total vertical height | - | |||||
| Length min. | 1.78 m | 2.34 m | 2.90 m | 3.47 m | 4.03 m | 4.59 m |
| Length max. | 1.78 m | 2.34 m | 2.90 m | 3.47 m | 4.03 m | 4.59 m |
| Top Width | 35.5 cm | |||||
| Bottom Width | 35.5 cm | 69.7 cm | 81 cm | |||
| Base length | - | |||||
| Gap between rungs | 28 cm | |||||
| Step spacing | - | |||||
| Step depth | - | |||||
| Ascent | One-sided | |||||
| Telescopable | No | |||||
| Use in stairs possible | No | |||||
| Ladder feet | Pressed | cross-beam | ||||
| Load max. | 150.00 kg | |||||
| Certifications | EN 131-1:2016, EN 131-2:2017 | |||||
| Weight | 2.90 kg | 3.70 kg | 4.60 kg | 6.40 kg | 7.30 kg | 8.60 kg |
| EAN / GTIN | 4019502338975 | 4019502338982 | 4019502338999 | 4019502339002 | 4019502339019 | 4019502339026 |
| Rung leaning ladder 4011 | |
|---|---|
| Brand, Make | Hymer |
| Classification | Professional use |
| Material | Aluminium |
| Design of treads | Rungs |
| Number of steps | 18 |
| Reach height max. | 6.00 m |
| Working height | 5.50 m |
| Standing height | 4.00 m |
| Platform height | - |
| Total vertical height | - |
| Length min. | 5.15 m |
| Length max. | - |
| Top Width | 35.5 cm |
| Bottom Width | 92.1 cm |
| Base length | - |
| Gap between rungs | 28 cm |
| Step spacing | - |
| Step depth | - |
| Ascent | One-sided |
| Telescopable | No |
| Use in stairs possible | No |
| Ladder feet | cross-beam |
| Load max. | 150.00 kg |
| Certifications | EN 131-1:2016, EN 131-2:2017 |
| Weight | 9.60 kg |
| EAN / GTIN | 4019502339033 |
