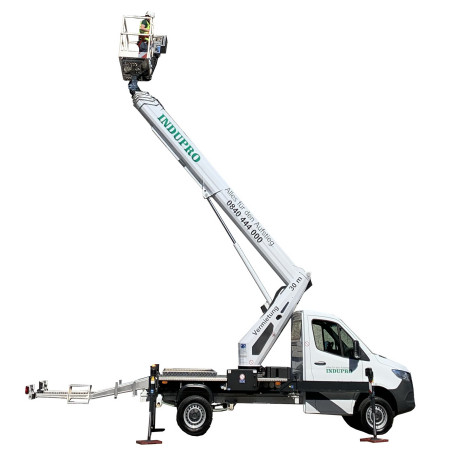

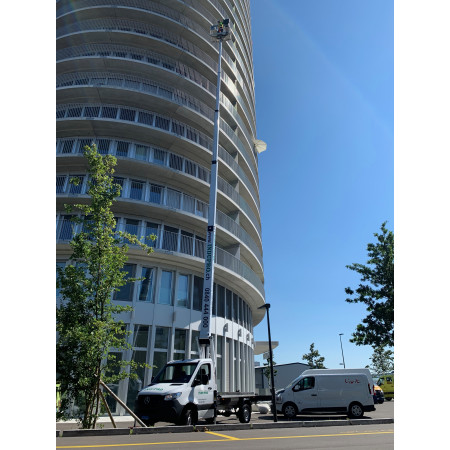

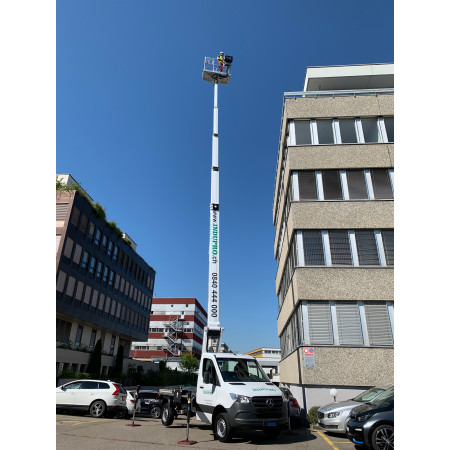

RUTHMANN Steiger TB 300 - Truck mounted aerial platform 3.5 tons
RUTHMANN Steiger TB 300 - Truck mounted aerial platform 3.5 tons

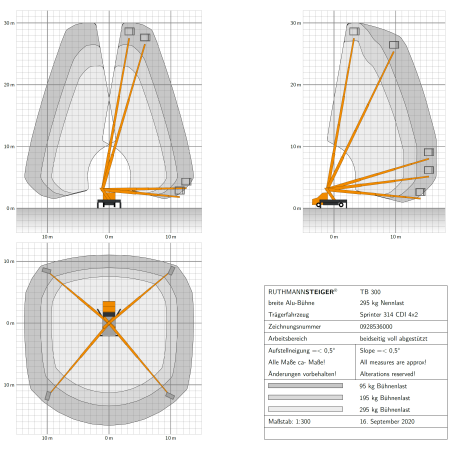

Outreach depending on load, angle of rotation and outfit *

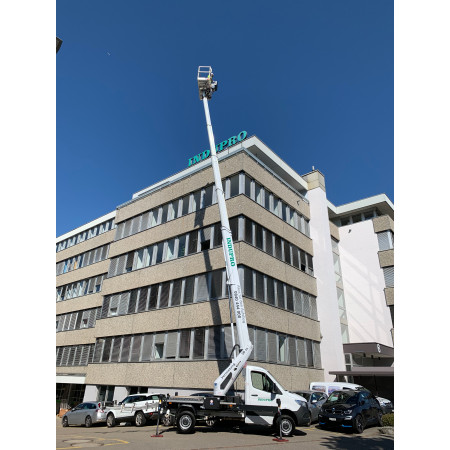

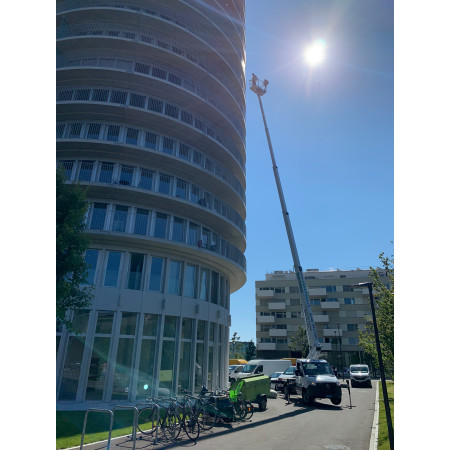

30 m max. working height

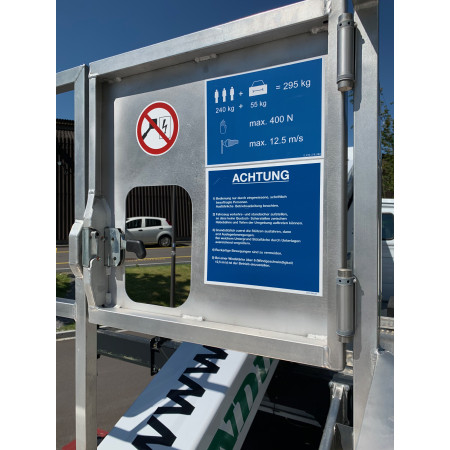

295 kg basket load
Extra large work basket for 3 people: 1.60 x 0.70 m
STEIGER TB 300
RUTHMANN - Truck mounted aerial platform 3.5 tons
Available in 1 - 3 days
Reference: MG-TB 300
The NEW class: 30 m on 3.5 t
- 30 m max. working height
- 16,2 m max. outreach
- 295 kg basket load
- 3 movements simultaneously possible
(lift, rotate, telescope) + basket rotation - Improved work speeds
- Premium technology in highest stability with easy handling
- High-strength fine-grained steel for maximum stability
- Improved basket unit with new design
| STEIGER TB 300 | |
|---|---|
| Brand, Make | Ruthmann |
| Reach height max. | 30.00 m |
| Working height | 29.50 m |
| Platform height max. | 28.00 m |
| Basket size | 160 x 70 cm |
| Working outreach | 16.20 m |
| JJB swivelling range | Without |
| Basket rotation | 170° |
| Range of rotation | 2 x 225° |

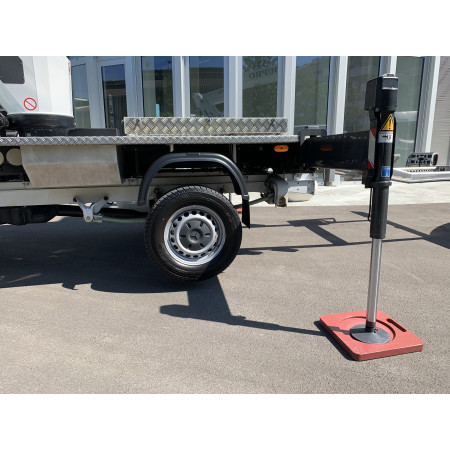

| Outriggers | hydraulic |
| Travelling gear | Truck mounted |
| non-marking wheels | No |
| Driving speed | - |
| Gradeability | - |
| Chassis inclination max. | 5° / 5° |
| Ground pressure | - |
| Ground pressure of outriggers | - |
| 230V electrical outlet in the basket | Yes |
| Power | Diesel |
| Power options | - |
| Battery | No |
| Footprint | Variabel (je nach Korblast und Ausladung) |
| Package dimensions | 8.09 x 2.34 x 3.10 m |
| Working load | 295.00 kg |
| Working load - indoor | - |
| Working load - outdoor |
295 kg (3 Personen) |
| Weight | 3,500.00 kg |
