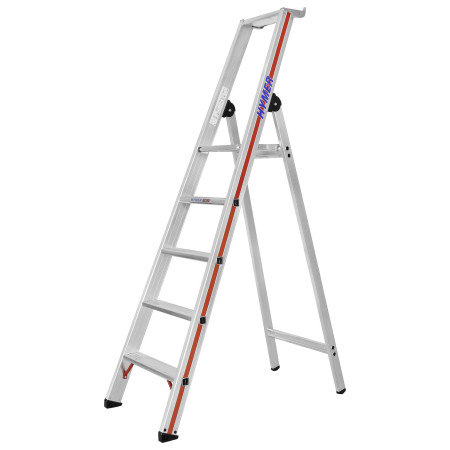

View Shopping CartStufenstehleiter mit Plattform 8026 | ||||||
---|---|---|---|---|---|---|
04 | 05 | 06 | 07 | 08 | 10 | |
Brand, Make | Hymer | |||||
Classification | Professional use | |||||
Material | Aluminium | |||||
Design of treads | Steps | |||||
Number of steps | 4 | 5 | 6 | 7 | 8 | 10 |
Reach height max. | 2.95 m | 3.15 m | 3.40 m | 3.65 m | 3.85 m | 4.30 m |
Working height | 2.45 m | 2.65 m | 2.90 m | 3.15 m | 3.35 m | 3.80 m |
Standing height | 0.95 m | 1.15 m | 1.40 m | 1.65 m | 1.85 m | 2.30 m |
Platform height | 0.95 m | 1.15 m | 1.40 m | 1.65 m | 1.85 m | 2.30 m |
Total vertical height | 1.55 m | 1.78 m | 2.00 m | 2.25 m | 2.48 m | 2.94 m |
Length min. | 1.70 m | 1.95 m | 2.20 m | 2.45 m | 2.70 m | 3.20 m |
Length max. | - | |||||
Top Width | 30.5 cm | |||||
Bottom Width | 48 cm | 50 cm | 53 cm | 55 cm | 57 cm | 63 cm |
Base length | 90 cm | 105 cm | 120 cm | 135 cm | 150 cm | 185 cm |
Gap between rungs | - | |||||
Step spacing | 25 cm | |||||
Step depth | 8 cm | |||||
Ascent | One-sided | |||||
Telescopable | No | |||||
Use in stairs possible | No | |||||

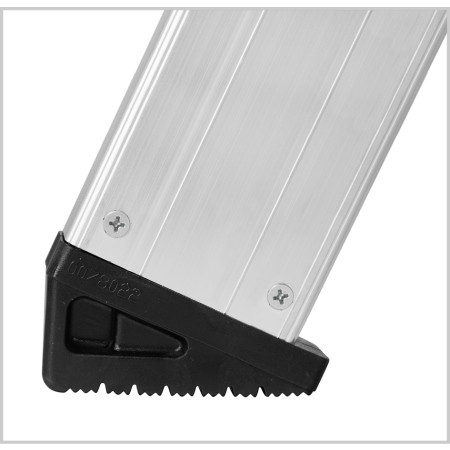

Ladder feet | Screwed | |||||
Load max. | 150.00 kg | |||||
Certifications | EN 131-1:2016, EN 131-2:2017 | |||||
Weight | 5.80 kg | 6.70 kg | 7.60 kg | 8.60 kg | 9.60 kg | 12.00 kg |

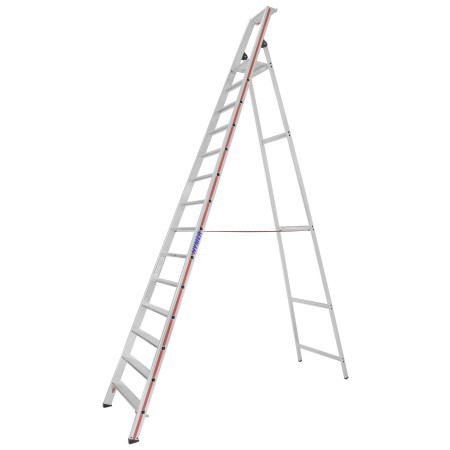

Stufenstehleiter mit Plattform 8026 | ||
---|---|---|
12 | 14 | |
Brand, Make | Hymer | |
Classification | Professional use | |
Material | Aluminium | |
Design of treads | Steps | |
Number of steps | 12 | 14 |
Reach height max. | 4.80 m | 5.25 m |
Working height | 4.30 m | 4.75 m |
Standing height | 2.80 m | 3.25 m |
Platform height | 2.80 m | 3.25 m |
Total vertical height | 3.40 m | 3.87 m |
Length min. | 3.70 m | 4.20 m |
Length max. | - | |
Top Width | 30.5 cm | |
Bottom Width | 68.0 cm | 74.0 cm |
Base length | 220 cm | 255 cm |
Gap between rungs | - | |
Step spacing | 25 cm | |
Step depth | 8 cm | |
Ascent | One-sided | |
Telescopable | No | |
Use in stairs possible | No | |
Ladder feet | Screwed | |
Load max. | 150.00 kg | |
Certifications | EN 131-1:2016, EN 131-2:2017 | |
Weight | 14.50 kg | 18.00 kg |
