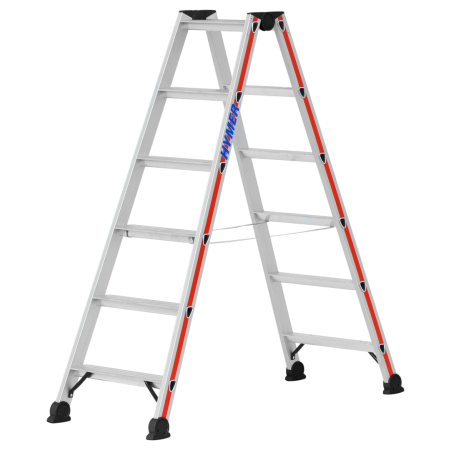

View Shopping CartStufenstehleiter 4024 | ||||||
---|---|---|---|---|---|---|
2 x 3 | 2 x 4 | 2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 | |
Brand, Make | Hymer | |||||
Classification | Professional use | |||||
Material | Aluminium | |||||
Design of treads | Steps | |||||
Number of steps | 2 x 3 | 2 x 4 | 2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 |
Reach height max. | 2.20 m | 2.40 m | 2.65 m | 2.90 m | 3.10 m | 3.35 m |
Working height | 1.70 m | 1.90 m | 2.15 m | 2.40 m | 2.60 m | 2.85 m |
Standing height | 0.20 m | 0.40 m | 0.65 m | 0.90 m | 1.10 m | 1.35 m |
Platform height | - | |||||
Total vertical height | 0.70 m | 0.90 m | 1.15 m | 1.38 m | 1.60 m | 1.85 m |
Length min. | 0.78 m | 1.03 m | 1.28 m | 1.53 m | 1.79 m | 2.02 m |
Length max. | 0.78 m | 1.03 m | 1.28 m | 1.53 m | 1.79 m | 2.02 m |
Top Width | 34 cm | |||||
Bottom Width | 41 cm | 43.5 cm | 46 cm | 48.5 cm | 51 cm | 54 cm |
Base length | 75 cm | 90 cm | 110 cm | 130 cm | 150 cm | 165 cm |
Gap between rungs | - | |||||
Step spacing | 25 cm | |||||
Step depth | 8 cm | |||||
Ascent | Double-sided | |||||
Telescopable | No | |||||
Use in stairs possible | No | |||||

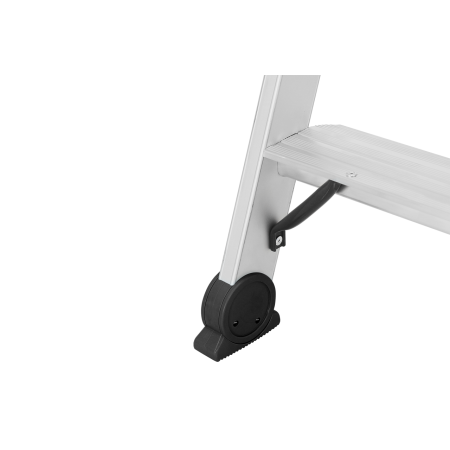

Ladder feet | Riveted | |||||
Load max. | 150.00 kg | |||||
Certifications | EN 131-1:2016, EN 131-2:2017 | |||||
Weight | 3.60 kg | 4.50 kg | 5.50 kg | 6.70 kg | 8.00 kg | 8.80 kg |
EAN / GTIN | 4019502339415 | 4019502339422 | 4019502339439 | 4019502339446 | 4019502339453 | 4019502339460 |
