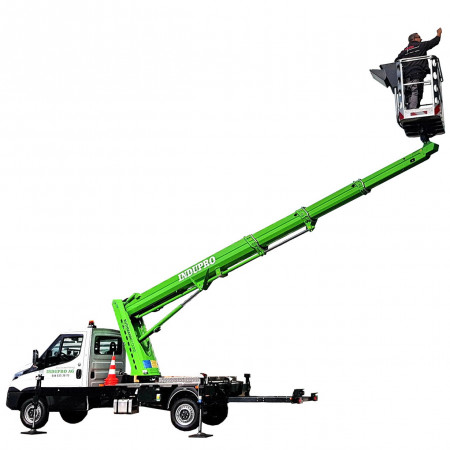

RUTHMANN ECOLINE 230 - Truck mounted aerial platform 3.5 tons

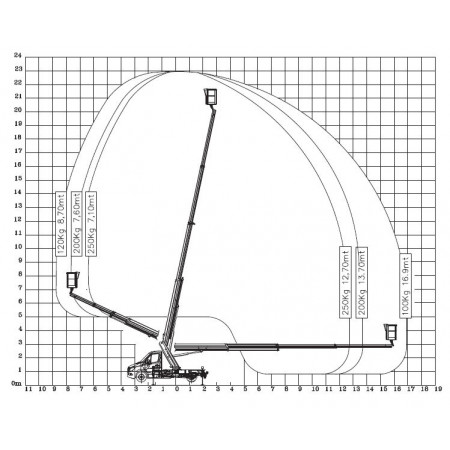

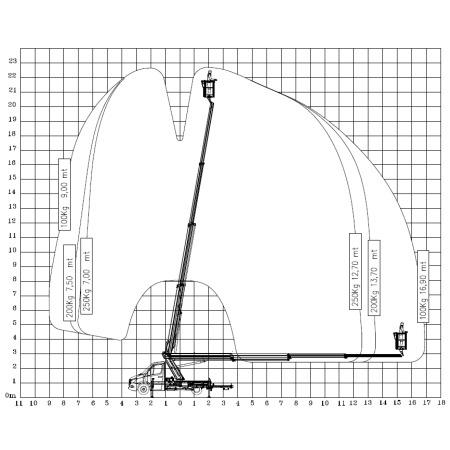

Outreach depending on load, angle of rotation and outfit

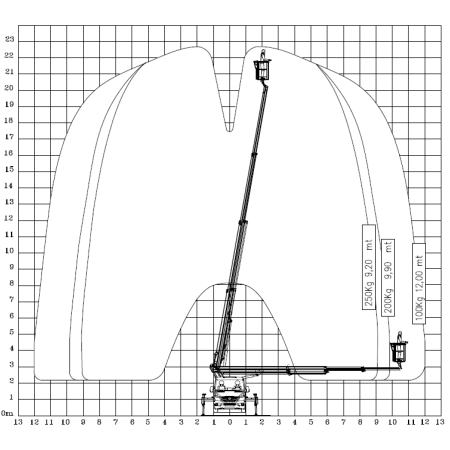

Outreach depending on load, angle of rotation and outfit

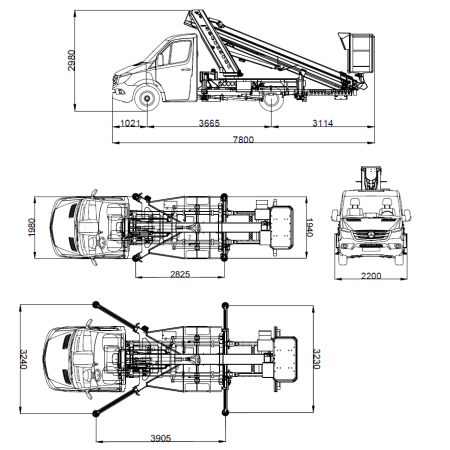

Dimensons
Ruthmann ECOLINE 230
Ruthmann ECOLINE 230
Secondary Guarding System
Ruthmann ECOLINE 230
ECOLINE 230
RUTHMANN - Truck mounted aerial platform 3.5 tons
Available in 1 - 3 days
Reference: MG-ECO 230
Small chassis - incredible performance
The ECOLINE 230 is a truck-mounted aerial work platform with a rigid telescopic system. The price-performance ratio is second to none. It has a 23-m working height and an enormous lateral outreach of up to 16,9 m. Like so many other innovations, this work platform can be mounted onto a variety of different chassis in the 3.5 t category.
| ECOLINE 230 | |
|---|---|
| Brand, Make | Ruthmann |
| Reach height max. | 23.00 m |
| Working height | 22.50 m |
| Platform height max. | 21.00 m |
| Basket size | 130 x 70 cm |
| Working outreach | 16.90 m |
| JJB swivelling range | Without |
| Basket rotation | 160° |
| Range of rotation | 360° |
| Outriggers | hydraulic |
| Travelling gear | Truck mounted |
| non-marking wheels | - |
| Driving speed | - |
| Gradeability | - |
| Chassis inclination max. | 5° / 5° |
| Ground pressure | - |
| Ground pressure of outriggers | - |
| 230V electrical outlet in the basket | Yes |
| Power | Diesel |
| Power options | - |
| Battery | No |
| Footprint | Variabel (je nach Korblast und Ausladung) |
| Package dimensions | 7.77 x 2.20 x 2.98 m |
| Working load | 250.00 kg |
| Working load - indoor | - |
| Working load - outdoor |
250 kg (2 Personen) |
| Weight | 3,500.00 kg |
