Diesel Scherenarbeitsbühne Compact 12DX

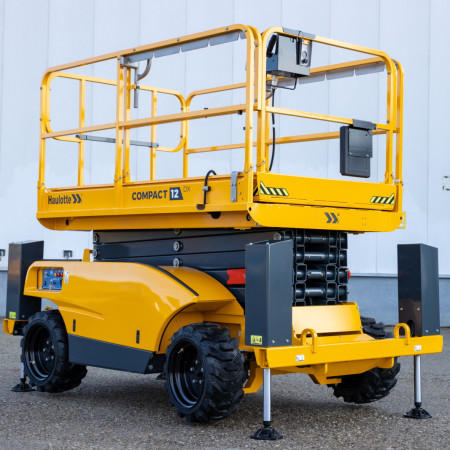

Die Stützen ragen nicht über die Maschinebreite hinaus

Allradantrieb mit automatischer Differentialsperre

Fahrbar auf 8.15 m Plattformhöhe

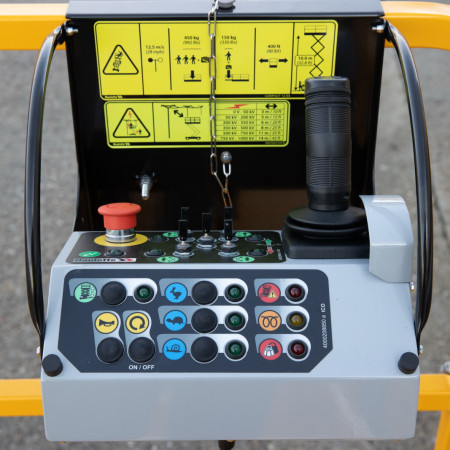

Abnehmbares Bedienpult auf der Plattform

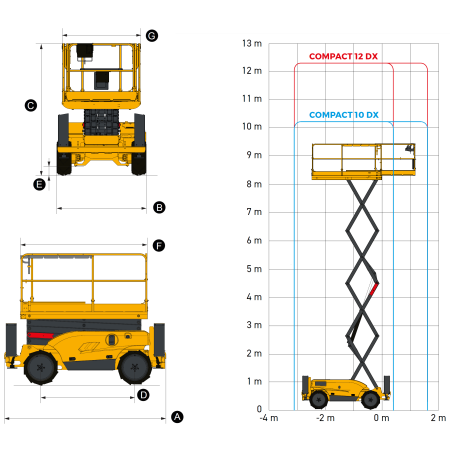

Reichweitendiagramm von Compact 10 und 12 DX

Compact 12 DX

Diesel-Scherenarbeitsbühne Haulotte

Available on demand

Reference: Compact 12 DX

	Compact 12 DX
Brand, Make	Haulotte
Reach height max.	12.05 m
Working height	11.55 m
Platform height max.	10.05 m
Platform height min.	-
Driving at maximum height	8.15 m
Basket size	245 x 145 cm
Platform extension	120 cm
Ground clearance	28 cm
Ground clearance - p°otholes down	-
Travelling gear	4 x 4
Driving speed	0.6 - 5.5 km/h
Gradeability	40 %
Chassis inclination max.	3° / ..
Ground pressure	-
230V electrical outlet in the basket	Optional
Power	Diesel
Power options	-
Battery	No
non-marking wheels	Optional
Package dimensions	3.18 x 1.78 x 2.56 m
Height at rest including railings	2.56 m
Height at rest without railings	1.70 m
Working load	450.00 kg
Working load - indoor	450 kg
Working load - outdoor	450 kg
Weight	3,965.00 kg
