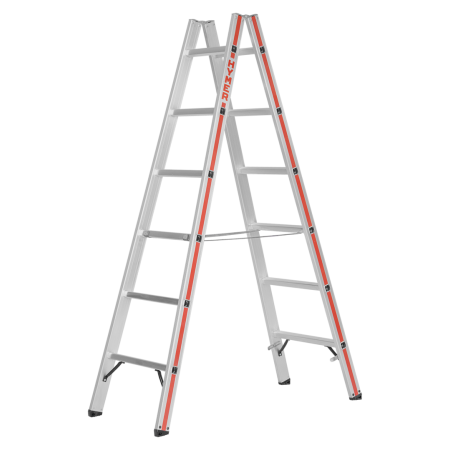

Sprossenstehleiter 6023 | ||||||
---|---|---|---|---|---|---|
2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 | 2 x 9 | 2 x 10 | |
Brand, Make | Hymer | |||||
Classification | Professional use | |||||
Material | Aluminium | |||||
Design of treads | Rungs | |||||
Number of steps | 2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 | 2 x 9 | 2 x 10 |
Reach height max. | 2.80 m | 3.10 m | 3.35 m | 3.65 m | 3.90 m | 4.20 m |
Working height | 2.30 m | 2.60 m | 2.85 m | 3.15 m | 3.40 m | 3.70 m |
Standing height | 0.80 m | 1.10 m | 1.35 m | 1.65 m | 1.90 m | 2.20 m |
Platform height | - | |||||
Total vertical height | 1.50 m | 1.75 m | 2.00 m | 2.30 m | 2.55 m | 2.85 m |
Length min. | - | |||||
Length max. | 1.57 m | 1.85 m | 2.13 m | 2.40 m | 2.69 m | 2.95 m |
Top Width | 34.0 cm | |||||
Bottom Width | 50.5 cm | 53.5 cm | 56.5 cm | 59.5 cm | 62.5 cm | 65.5 cm |
Base length | 100 cm | 115 cm | 130 cm | 145 cm | 160 cm | 185 cm |
Gap between rungs | 28 cm | |||||
Step spacing | - | |||||
Step depth | 30 x 30 mm | |||||
Ascent | Double-sided | |||||
Telescopable | No | |||||
Use in stairs possible | Optional | |||||

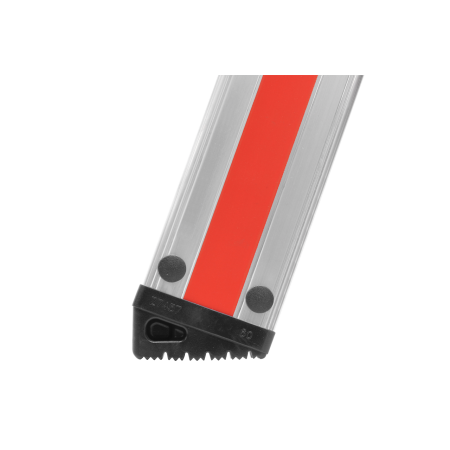

Ladder feet | Screwed | |||||
Load max. | 150.00 kg | |||||
Certifications | EN 131-1:2016, EN 131-2:2017 | |||||
Weight | 5.80 kg | 6.80 kg | 7.80 kg | 9.20 kg | 10.30 kg | 11.40 kg |
Sprossenstehleiter 6023 | |||
---|---|---|---|
2 x 12 | 2 x 14 | 2 x 16 | |
Brand, Make | Hymer | ||
Classification | Professional use | ||
Material | Aluminium | ||
Design of treads | Rungs | ||
Number of steps | 2 x 12 | 2 x 14 | 2 x 16 |
Reach height max. | 4.70 m | 5.25 m | 5.80 m |
Working height | 4.20 m | 4.75 m | 5.30 m |
Standing height | 2.70 m | 3.25 m | 3.80 m |
Platform height | - | ||
Total vertical height | 3.40 m | 3.90 m | 4.45 m |
Length min. | - | ||
Length max. | 3.53 m | 4.10 m | 4.65 m |
Top Width | 34.0 cm | ||
Bottom Width | 71.5 cm | 77.5 cm | 83.5 cm |
Base length | 205 cm | 240 cm | 260 cm |
Gap between rungs | 28 cm | ||
Step spacing | - | ||
Step depth | 30 x 30 mm | ||
Ascent | Double-sided | ||
Telescopable | No | ||
Use in stairs possible | Optional | ||
Ladder feet | Screwed | ||
Load max. | 150.00 kg | ||
Certifications | EN 131-1:2016, EN 131-2:2017 | ||
Weight | 14.10 kg | 18.80 kg | 22.50 kg |
