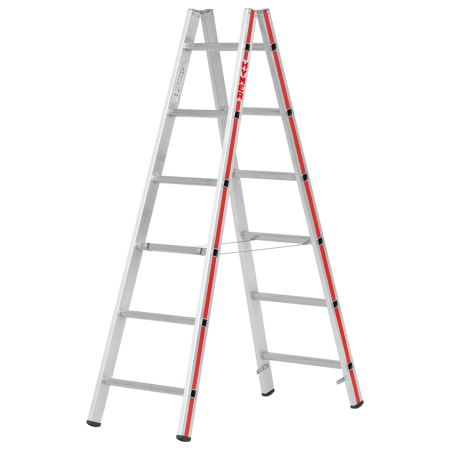

Sprossenstehleiter 4023 | ||||||
---|---|---|---|---|---|---|
2x5 | 2x6 | 2x7 | 2x8 | 2x10 | 2x12 | |
Brand, Make | Hymer | |||||
Classification | Professional use | |||||
Material | Aluminium | |||||
Design of treads | Rungs | |||||
Number of steps | 2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 | 2 x 10 | 2 x 12 |
Reach height max. | 2.75 m | 3.00 m | 3.30 m | 3.55 m | 4.10 m | 4.60 m |
Working height | 2.25 m | 2.50 m | 2.80 m | 3.05 m | 3.60 m | 4.10 m |
Standing height | 0.75 m | 1.00 m | 1.30 m | 1.55 m | 2.10 m | 2.60 m |
Platform height | - | |||||
Total vertical height | 1.45 m | 1.70 m | 1.95 m | 2.25 m | 2.75 m | 3.30 m |
Length min. | - | |||||
Length max. | 1.47 m | 1.75 m | 2.05 m | 2.33 m | 2.88 m | 3.44 m |
Top Width | 34.0 cm | |||||
Bottom Width | 50.5 cm | 53.5 cm | 56.5 cm | 59.5 cm | 65.5 cm | 74.5 cm |
Base length | 95 cm | 115 cm | 125 cm | 145 cm | 185 cm | 205 cm |
Gap between rungs | 28 cm | |||||
Step spacing | - | |||||
Step depth | 30 x 30 mm | |||||
Ascent | Double-sided | |||||
Telescopable | No | |||||
Use in stairs possible | Optional | |||||

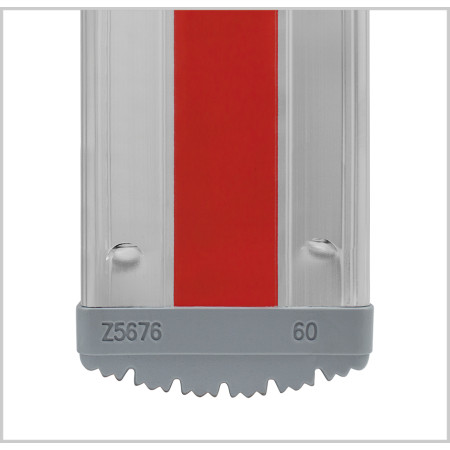

Ladder feet | Riveted | |||||
Load max. | 150.00 kg | |||||
Certifications | EN 131-1:2016, EN 131-2:2017 | |||||
Weight | 5.10 kg | 6.10 kg | 7.30 kg | 8.40 kg | 10.90 kg | 13.60 kg |
EAN / GTIN | 4019502339040 | 4019502339057 | 4019502339064 | 4019502339071 | 4019502339088 | 4019502339095 |
