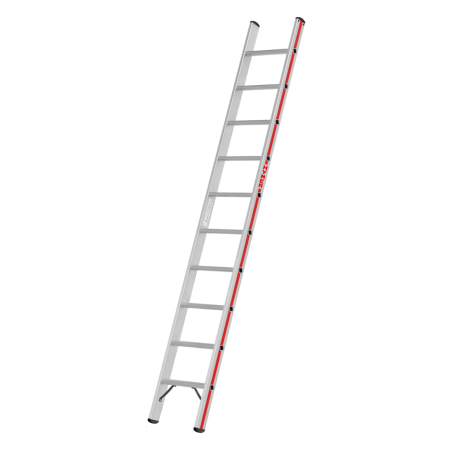

View Shopping CartStufenanlegeleiter 8512 | ||||||
---|---|---|---|---|---|---|
06 | 08 | 10 | 12 | 14 | 16 | |
Brand, Make | Hymer | |||||
Classification | Professional use | |||||
Material | Aluminium | |||||
Design of treads | Steps | |||||
Number of steps | 6 | 8 | 10 | 12 | 14 | 16 |
Reach height max. | 2.70 m | 3.20 m | 3.65 m | 4.10 m | 4.55 m | 5.00 m |
Working height | 2.20 m | 2.70 m | 3.15 m | 3.60 m | 4.05 m | 4.50 m |
Standing height | 0.70 m | 1.20 m | 1.65 m | 2.10 m | 2.55 m | 3.00 m |
Platform height | - | |||||
Total vertical height | - | |||||
Length min. | 1.72 m | 2.22 m | 2.72 m | 3.22 m | 3.72 m | 4.02 m |
Length max. | 1.72 m | 2.22 m | 2.72 m | 3.22 m | 3.72 m | 4.02 m |
Top Width | 42.5 cm | |||||
Bottom Width | 42.5 cm | 96.1 cm | ||||
Base length | - | |||||
Gap between rungs | - | |||||
Step spacing | 25 cm | |||||
Step depth | 8 cm | |||||
Ascent | One-sided | |||||
Telescopable | No | |||||
Use in stairs possible | No | |||||

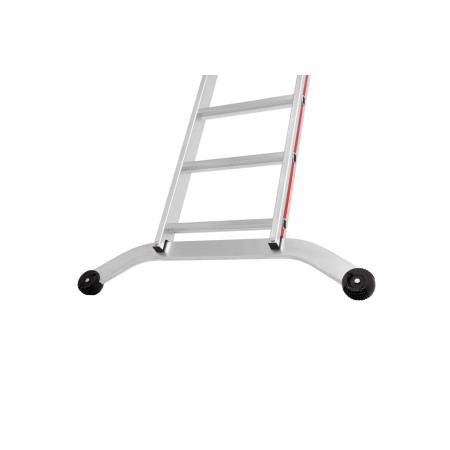

Ladder feet | Screwed | cross-beam | ||||
Load max. | 150.00 kg | |||||
Certifications | EN 131 | |||||
Weight | 4.50 kg | 5.70 kg | 6.90 kg | 9.20 kg | 10.00 kg | 11.80 kg |

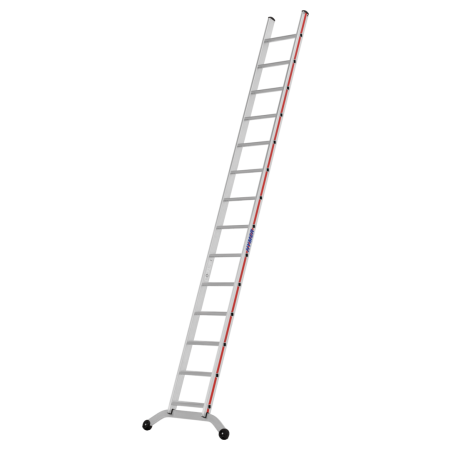

Stufenanlegeleiter 8512 | |
---|---|
Brand, Make | Hymer |
Classification | Professional use |
Material | Aluminium |
Design of treads | Steps |
Number of steps | 18 |
Reach height max. | 5.50 m |
Working height | 5.00 m |
Standing height | 3.50 m |
Platform height | - |
Total vertical height | - |
Length min. | 4.72 m |
Length max. | 4.72 m |
Top Width | 42.5 cm |
Bottom Width | 104 cm |
Base length | - |
Gap between rungs | - |
Step spacing | 25 cm |
Step depth | 8 cm |
Ascent | One-sided |
Telescopable | No |
Use in stairs possible | No |
Ladder feet | cross-beam |
Load max. | 150.00 kg |
Certifications | EN 131 |
Weight | 12.80 kg |
