Mostra CarrelloMietbühne mit Senkrecht-Masten zum Heben von Personen
N. articolo MG-STAR 10

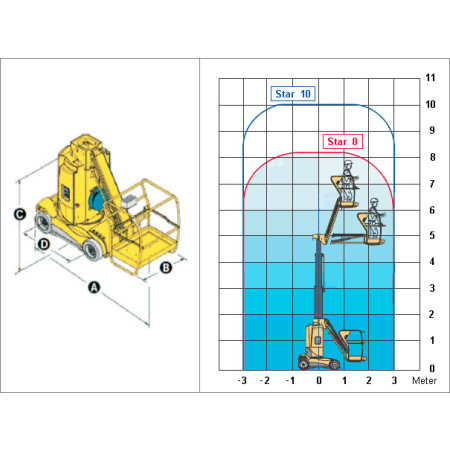

Die Ausladung (seitliche Reichweite) der Maschine wird jeweils ab dem Zentrum der Maschine gemessen.
Im Jahr 2015 wurden die Teleskopmastbühnen der Modellreihe STAR komplett überarbeitet. Die Arbeitsbühnen sind jetzt noch wendiger, robuster und zuverlässiger als je zuvor.
Unserer Broschüre (unter Downloads) zeigt Ihnen sämtliche neuen Features und Innovationen mit welchen die Bühnen heute ausgestattet werden

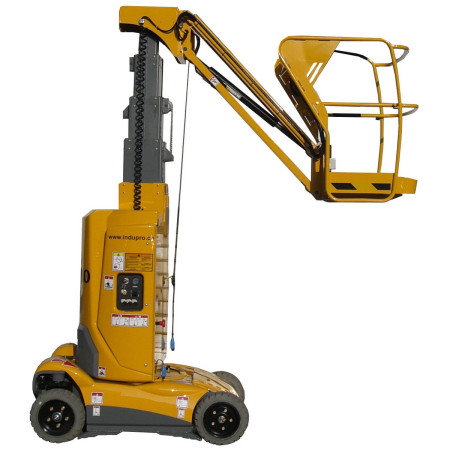

Teleskopmastbühne STAR 10 | |
---|---|
Marca / Fabbricante | Haulotte |
Sbraccio verticale | 10.00 m |
Altezza di lavoro | 9.50 m |
Altezza piattaforma max. | 8.00 m |
Dimensioni cestello | 98 x 78 cm |
Sbraccio orizzontale | 3.00 m |
Braccio cestello | -60° bis +70° |
Rotazione del cestello | No |
Rotazione della torretta | 345° |
Stabilizzatori | senza |
Trazione | 2 x 4 |
Ruote anti traccia | Si |
Velocità di traslazione | 0.6 - 5 km/h |
Pendenza superabile | 25 % |
Inclinazione del telaio max. | 3° / .. |
Pressione al suolo | - |
Pressione al suolo die stabilizzatori | - |
Presa elettrica 230V nella cestello | Si |
Propulsione | Batterie |
Opzioni di propulsione | - |
Batterie | 24V - 250Ah |
Dimensione esterna dei stabilizzatori in posizione di lavoro | - |
Dimensioni riposto LxWxH | 2.70 x 1.00 x 1.99 m |
Portata massima | 200.00 kg |
Portata massima - interno | 200 kg (max. 2 Personen) |
Portata massima - esterno | 200 kg (max. 1 Person) |
Peso | 2,677.00 kg |
